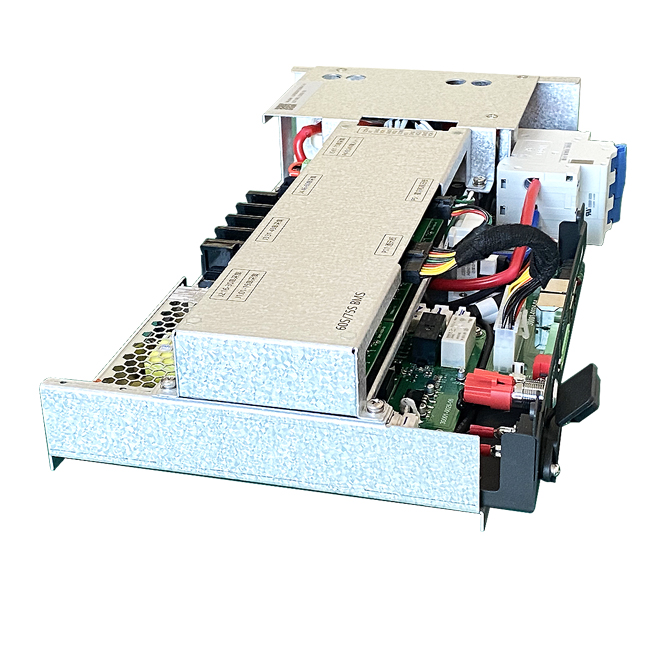

Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V

Brand Name : GCE

Model Number : RBMS07S60S100A

Certification : CE/RoHS/MSDS/

Place of Origin : China

MOQ : 2

Price : negotiate with：wenglin@hngce.com, WhatsAPP me: +86-15570747076

Supply Ability : 1000 set per month

Delivery Time : 15-20 day

Packaging Details : Carton or additional wooden package

Product Name : Integrated BMS

Current : 100A

Voltage : 240V

Number of battery strings : 60 S（4 x 15 S）

Communication : CAN, RS485

Warranty : 3 years

Design : Slave and master BMS all in one

Life Span : Long life cycle, >3000 times at 80% DOD.

Contact Now

GCE Lifepo4 LFP battery 75S 100A BMS 240V lithium battery BMS with RS485 CAN Communication

Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V

Integrated BMS

  • System Operating Voltage Range:120V-370V
  • Battery Strings: 30S-75S
  • SOC: ≤5%
  • Communication Mode: RS485/CAN
  • Hall Sensor Specifications: 50A/100A
  • Charging Temperature: -10~75℃
  • Discharging Temperature: -20~75℃
  • Power consumption:≤10W
  • Size:410*232*128mm)
  • Net weight:~4.5kg

Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V

1. Protection level:
2 two levels
Level 1 cut off charge / discharge
Level 2 micro cut-off switch, system power down
2. Operating Temperature:
Charging : －10～75℃
Discharging : -20 to 75℃
Storage : -40 to +75℃
3. Display mode:
6-digit LED indicator,
including 1-bit fault indication,
1-bit operation indication,
4-bit SOC power indication
HMI display: optional
Hall sensor specifications: 50A/100A
Maximum load of power components
Steady-state: 100A
transient state: 150A/10S( Adjustable)
Alarm level: 1 Level
Specification
1. It is high integrated with less installation space.
2. Long life cycle, >3000 times at 80% DOD.
3. It is without heavy metals and is environmentally friendly.
4. Maintenance-free, there is no memory effect.
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. Master and Slave all in one.
Product Description
item
value
Place of Origin
China
Hunan
Application
Solar Energy Storage Systems, Electric Forklifts, Golf Carts
Brand Name
GCE
Model Number
75 S(5 x 15 S)
Model
BMS(Battery Management System)
Design
Slave and master BMS all in one
Voltage
120 - 228 V
Current
100mA ± 10mA
Strings
30s-75s
Communication
CAN, RS485
Size
410*232*128mm
Application
Solar Energy Storage Systems, Electric Forklifts, Golf Carts
BMS(Battery Management System)
Lithium iron phosphate battery
Warranty
3 years

Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V

Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V

Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V

Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V

10 years of production experience
More than 10 years of development and accumulation, we has unparalleled advantages in the BMS industry.
Strong development team
We have many senior BMS R&D engineers. He has considerable experience in R&D, debugging, and rectification of new products.
Efficient production system process
We have an advanced production process. It only takes 15 days from order to delivery for conventional products, and 25 days for unconventional products.
Professional service
We have an excellent service team. Quickly respond to orders and product abnormalities. Everything is customer-centric.
Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V
Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V
Packing & Delivery
Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V
Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V
